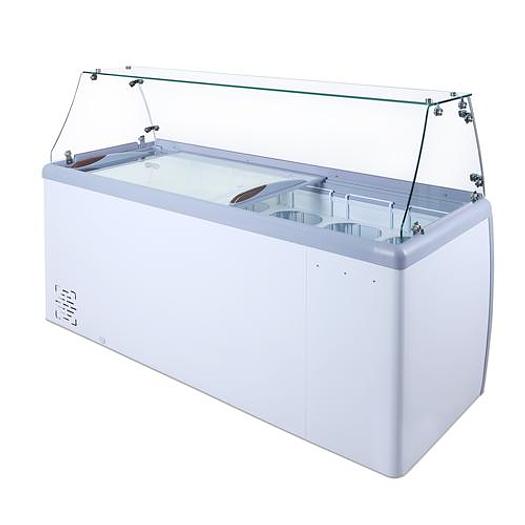

60-inch Ice Cream Dipping Freezer with Flat Sneeze Guard

• Comes with four casters for mobility

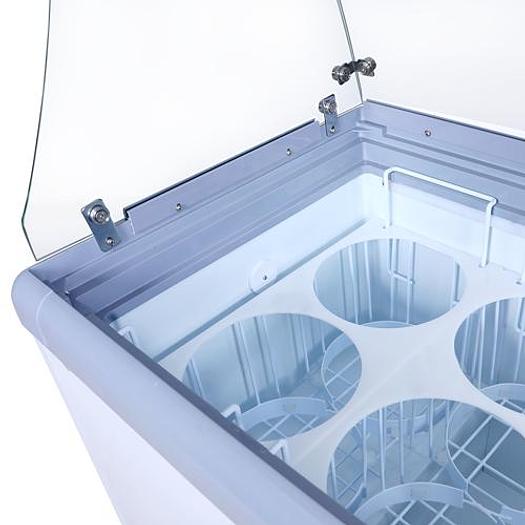

• Designed with sliding doors and locks for easy access
• The exterior is made of durable white powder-coated steel; the pre-coated steel interior wall
• Built-in lock for security
• Grey plastic trim and door frames
• Conveniently located near the defrost drain

Technical

FREEZER CAPACITY: 370L

TUB LOAD QTY: 10 displayed above (8 accessible) | 8 stored (below)

TEMPERATURE RANGE: -26°C to 6°C / -15°F to 43°F

FOAMING COMPONENTS: C-P

REFRIGERANT: R290

COMPRESSOR HP: 1/2

AMPS: 4

BTU: 1195

DOOR PANEL: Glass

ELECTRICAL: 110V / 60Hz / 1Ph

OVER-ALL DIMENSIONS (WDH): 36″ x 28″ x 48″

NET WEIGHT: 349 lbs.

GROSS DIMENSIONS: Cabinet: 63″ x 30″ x 37″ | Glass Canopy: 64.6″ x 23″ x 0.5″

>>This equipment is intended for use in an indoor environment where ambient temperature and humidity do not exceed 24°C / 75°F and 55% relative humidity.
