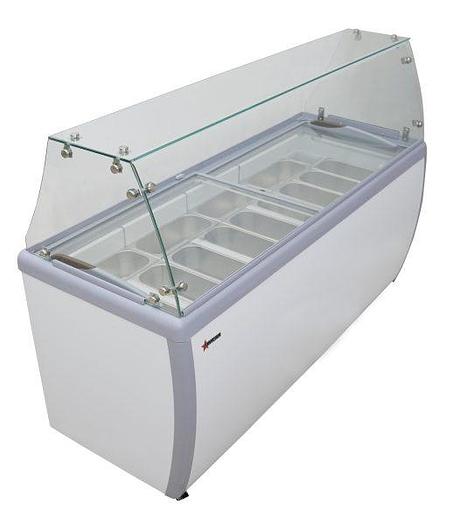

71″ Thirteen Pan Gelato Dipping Cabinet with Flat Sneeze Guard and Pans

• Ideal for displaying up to thirteen 5-liter pans of frozen desserts
• Comes with six casters for mobility
• Designed with sliding doors and locks for easy access
• Elegant design with a durable construction
• Digital temperature controller lets you set temperatures between -15°F to 32°F (-26ºC to 0ºC)
• Environment-Friendly R290 Refrigerant
• Powerful compressor with power of 295 W (2/3+ HP)

Description

Enhance your gelato service with this 71" Thirteen Pan Gelato Dipping Cabinet. With its sleek design, superior temperature control, and ample capacity, it's a must-have for businesses that value quality and presentation. Serve your customers their favorite frozen treats in style and freshness with this gelato cabinet.

Capacity:

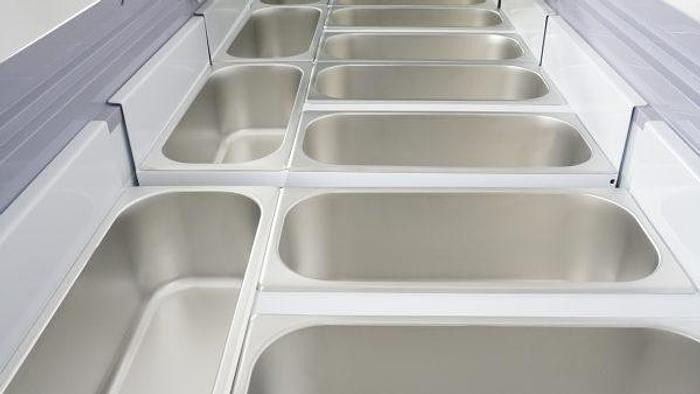

Featuring Fourteen pans in total, including thirteen 5-liter pans and one 180 g pan, you have the flexibility to showcase a variety of gelato flavors and toppings to delight your customers. This cabinet boasts a generous 450 liters (15.9 cu.ft.) of space, allowing you to store a wide range of gelato flavors and toppings.

The space beneath the display pans provide a convenient storage area for back-up gelato pans, making it an ideal unit for for businesses with limited space. Also, with a robust load capacity of 450 kg (992 lbs.), you can confidently store a substantial amount of gelato without compromising performance.

Design Features:

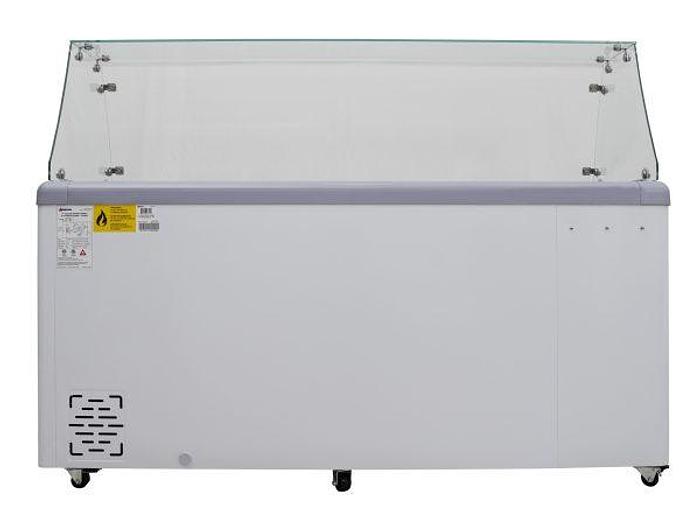

With dimensions of 71" x 28" x 52.2", it's designed to fit seamlessly into your space and attract your customers with a wide array of frozen desserts such as ice-creams and gelato. The interior is constructed with white pre-coated steel sheet for durability and easy cleaning, while the exterior is made of durable white powder-coated steel, giving it an attractive and long-lasting finish.

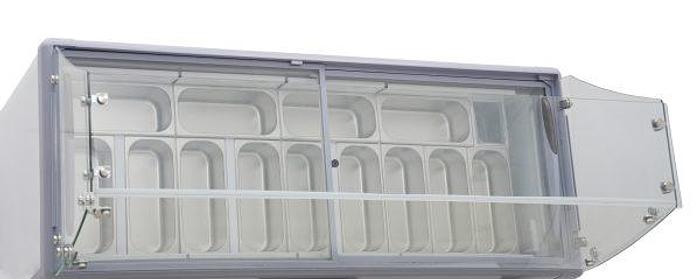

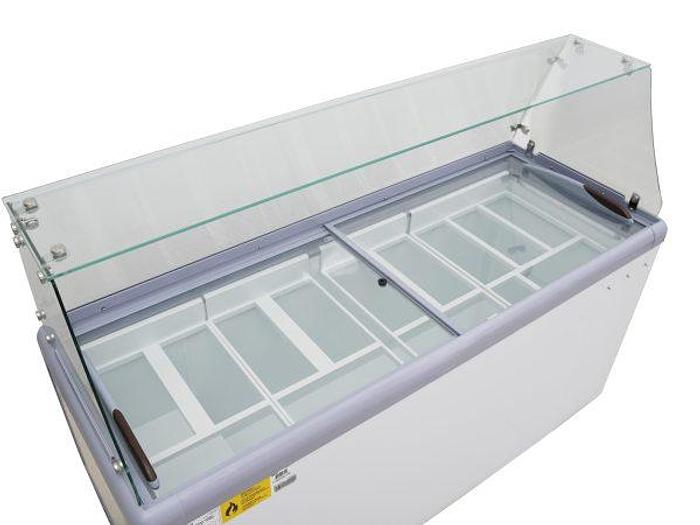

Equipped with two sliding glass doors, this cabinet ensures easy access and excellent visibility of your gelato offerings. Six casters provide mobility and ease of positioning, allowing you to place this cabinet wherever it suits your business best.

Refrigeration System:

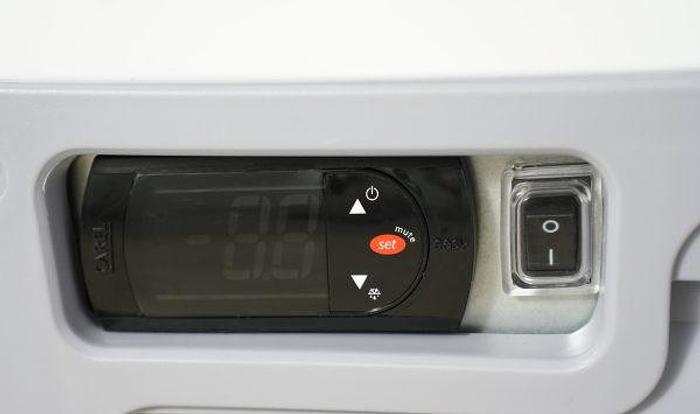

The cabinet offers precise temperature control with a range of -26°C to 0°C (-15°F to 32°F) through a digital temperature controller, ensuring your gelato stays at the perfect serving temperature. Powered by a compressor cooling system and utilizing eco-friendly R290 refrigerant, this cabinet is efficient and environmentally responsible.

The compressor is powered at 295W (2/3+ HP), ensuring efficient performance. It operates on 110V, 60Hz, single-phase electrical supply, drawing just 4A. Manual defrosting allows you to control and maintain the cabinet's performance with ease. Designed for N/ST climate class, this cabinet is suitable for a variety of operating environments.

Technical

Capacity: 15.9 cu.ft. (450 L)

Maximum Load: 992.1 lb. (450 kg.)

Number of Doors: 2

Number of Casters: Yes (6)

Number of Pans: 13

Pan Capacity: x13 – 5L | x1 – 180g

Pan Size:

5L – 14.2”x 4.7” x 6.5” (360 x 120 x 165mm)

180g – 6.3” x 5.2” x 3.9” (161 x 132 x 100mm)

Interior Material: White Pre-coated Steel Sheet

Exterior Material: Durable White Powder Coated Steel

Power: 295W

Compressor Power: 2/3+ hp

Amps: 4A

Electrical: 110V / 60Hz / 1Ph

Temperature Controller: Digital

Temperature Range: -26°C to 0°C (-15°F to 32°F)

Refrigerant: R290

Injection: 104.9g

Type Of Climate: N/ST

Insulation Material: C5H10

Defrosting: Manual

Cooling System: Compressor

Net Weight: 257.9 lb. (117 kg.)

Net Dimensions (WDH): 70.9” x 28.1” x 52.2” (1800 x 715 x 1325mm)

Gross Weight: 313 lb. (142 kg.)

Cabinet Gross Dimensions (WDH): 73.8” x 29.9” x 37.4” (1875 x 760 x 950 mm)

Glass Gross Dimensions (WDH): 72.8” x 23” x 0.5” (1850 x 584 x 13 mm)
