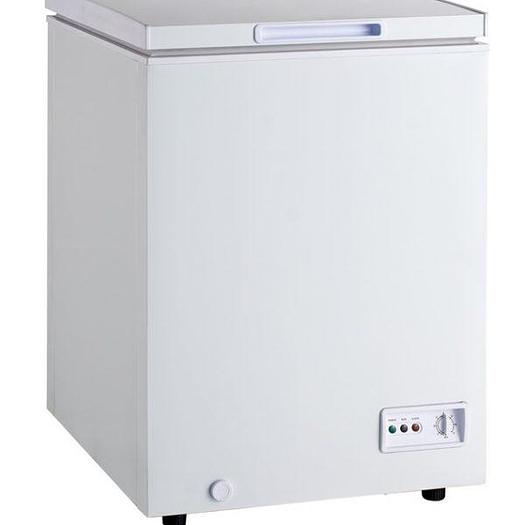

30-inches Chest Freezer with Solid Flat Top - SEE VIDEO

Description

Perfect for convenience stores, ice cream shops, supermarkets, and/or restaurants

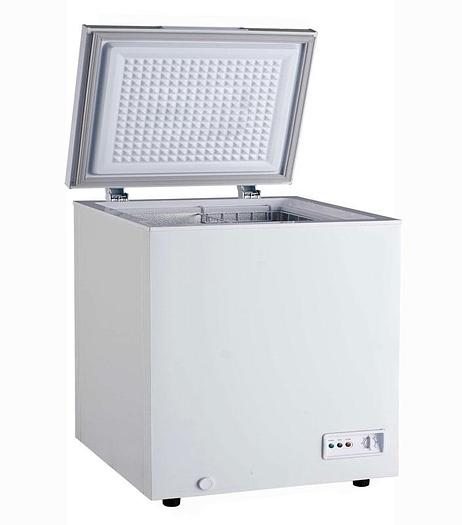

Hinged lid design enables it to stay open while consumers are loading/taking out items without having to hold it up for hours

Spacious to keep your frozen products in proper food storage temperature

Aluminum interior walls

Technical

COMPRESSOR HP: 1/6

FREEZER CAPACITY: 4.94 cu. ft.

NUMBER OF DOORS: 1

NUMBER OF BASKETS INCLUDED: 1

MAX. NUMBER OF BASKETS THAT CAN FIT IN THE UNIT: 2

TEMPERATURE RANGE: -8°F to 5°F /-22°C to -15°C

REFRIGERANT: R600a

ELECTRICAL: 115V/60Hz/1Ph

CLIMATE TYPE: N/ST

DEFROST: Manual

FOAMING COMPONENTS: Cyclopentane

AMP: 1.4

NEMA PLUG: 5-15

EXTERIOR MATERIAL: Durable white powder-coated steel

INSIDE WALLS: Precoated Steel

DOOR PANEL: Solid

DOOR TYPE: Hinged

CABINET COLOR: White

DOOR FRAME COLOR: White

HANDLE: Recessed

LOCK: No

DEFROST DRAIN: Yes

OPTIONAL INTERIOR LIGHT: No

ADJUSTABLE THERMOSTAT: Mechanical

MOBILITY CASTERS: 4 casters, 2 with brakes

CERTIFICATIONS: ETL, ETL SANITATION

NET WEIGHT: 68 LBS / 30.84 KG

GROSS WEIGHT: 75 LBS / 34 KG

DIMENSIONS (DWH): 754 x 564 x 845 MM / 29.68″ x 22.20″ x 33.26″

GROSS DIMENSIONS: 770 x 580 x 880 MM / 30.31″ x 22.83″ x 34.64″

>>This equipment is intended for use in an indoor environment where ambient temperature and humidity do not exceed 24°C / 75°F and 55% relative humidity.
