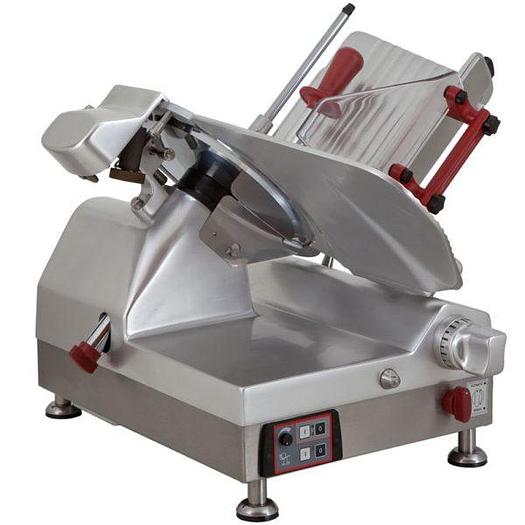

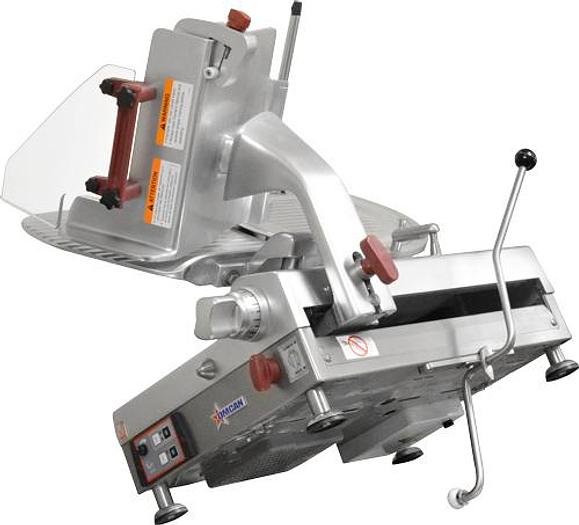

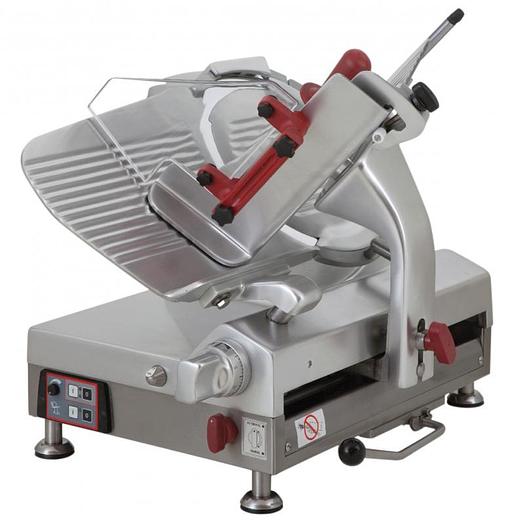

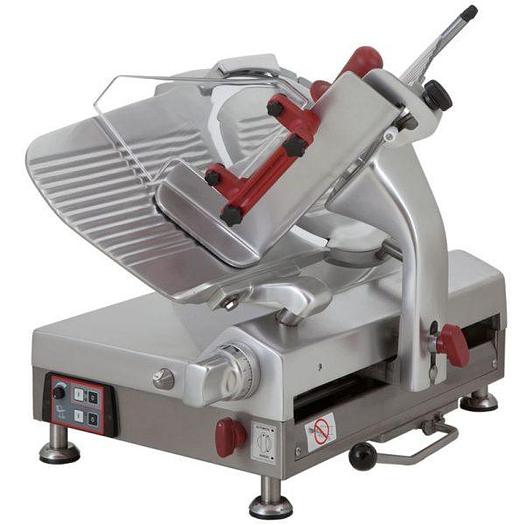

13-inch Blade Gear-Driven Automatic Slicer - SEE VIDEO

Adjustable carriage stroke and consequent n of cuts

GEAR driven transmission

Two separate motors – one for the blade – one for the carriage

Removable parts for cleaning: blade cover, product-holder plate, aluminum meat grip, stainless steel slice deflector

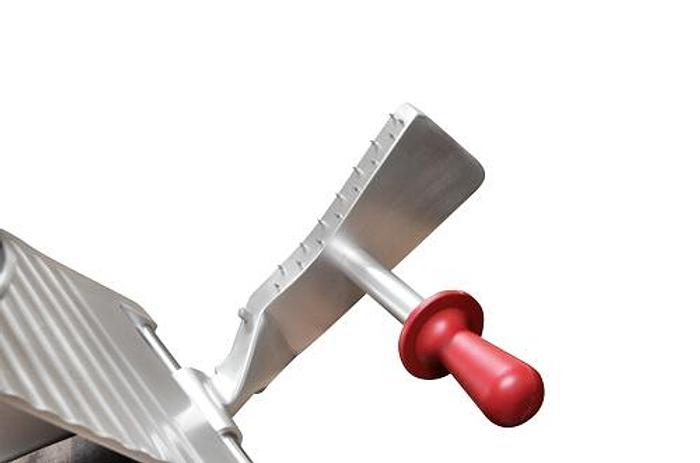

Fast – no tools removable meat grip

Blade with a narrow band of chromium-plated hardened steel

45 inclined blade

Rotatable and removable sharpener

Dual action sharpener

Fixed ring guard

Interlock on gauge plate on zero position

Large product–holder plate

Readily removable transparent Plexiglas Protection on the product–holder plate

New design with large spaces

Fence included

Shipped on Pallet

Description

This gravity feed slicer has an automatic sliding carriage and two independent high-performance fan-cooled motors: one for the carriage and one for the blade. The gears are constantly bathed in oil. The polished anodized aluminum body, along with its high carbon, hard chromed blade, provides long life and durability. It is easy to disassemble and clean.

Technical

Blade Size: 13” (330 mm)

Cut Thickness: 0 – 0.55” (0 – 14 mm)

Cheese Slicing*: High

Slicing Volume**: 8 Hours or more

Slicing Capacity: 10.2” x 6.7” (260 x 170 mm) | 9.25” (235 mm)

RPM: 240

Power: 450 W / 0.6 hp

Electrical: 120V / 60Hz / 1Ph

Net Weight: 130 lb. (59 kg.)

Net Dimensions (WDH): 22.4” x 25.6” x 24.4” (568 x 650 x 620 mm)

Gross Weight: 163 lb. (74 kg.)

Gross Dimensions (WDH): 36.2” x 33.8” x 32.7” (919 x 858 x 830 mm)

Cheese Slicing Rating: 0/4 – Not Recommended, 1/4 – Occasional, 2/4 – Low, 3/4 – Medium, 4/4 – High
