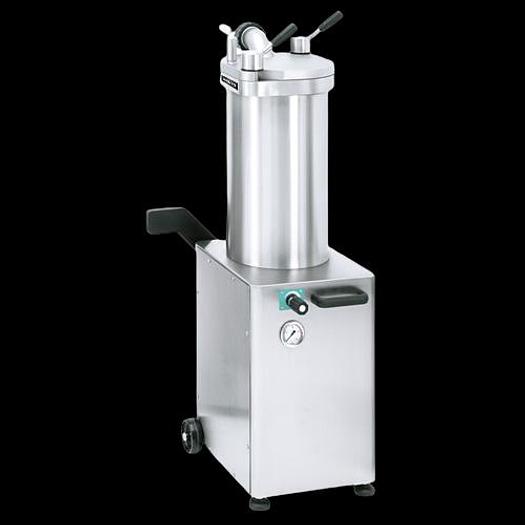

Trento 48 lb (22 kg) Hydraulic Piston Sausage Stuffer Stainless Steel – 220V, 1 Phase, 1300W (1.75 HP) SEE VIDEO

Description

Experience the power of hydraulic technology that makes sausage stuffing smoother and more efficient than ever.

The hydraulic piston ensures consistent pressure, making it easy to control the sausage stuffing process and achieve professional results every time. It’s built to withstand the demands in the kitchens. Upgrade your sausage-making game with this equipment.

FEATURES:

• 2 wheels and handle for easy transport

• Easily accessible speed control

• Pressure gauge

• Removable lid; adjustable lock nuts with handle

• Independent hydraulic oil reservoir

• Thermal-protected motor

• Automatic knee lever lock until the piston reaches the lower position

Technical

Approx. Meat Capacity: 48 lb. (22 kg.)

Barrel Capacity: 26.6 Qt. (25.2 L)

Operating Temperature: 40° – 100° F (5° – 40° C)

Power: 1300 W / 1.75 hp

Electrical: 220V / 60Hz / 1Ph

Amps: 8.8 A

Net Weight: 310 lb. (140 kg.)

Net Dimensions (WDH): 23” x 21” x 49” (584 x 533 x 1245 mm)

Gross Weight: 350 lb. (160 kg.)

Gross Dimensions (WDH): 21” x 27” x 54” (533 x 686 x 1372 mm)

Optional Parts & Accessories

Item 69577 – Black Stainless Steel Swivel Caster With Brake for 26 Lb., 48 Lb., and 65 Lb. Capacity Stainless Steel Sausage Stuffers

Item No. – Description / External Dia. / Internal Dia. / Tube Length

66615 – short / 10 mm / 8 mm / 160 mm

66614 – short / 12 mm / 8 mm / 240 mm

36060 – short / 12 mm / 10 mm / 206 mm

16505 – short / 12 mm / 10 mm / 160 mm

19420 – short / 15 mm / 12 mm / 195 mm

16507 – short / 18 mm / 15 mm / 160 mm

16508 – short / 20 mm / 17 mm / 195 mm

16509 – short / 25 mm / 22 mm / 195 mm

36057 – short / 30 mm / 27 mm / 200 mm

36058 – short / 38 mm / 35 mm / 220 mm

36059 – short / 43 mm / 40 mm / 200 mm

36051 – long / 12 mm / 10 mm / 240 mm

36052 – long / 14 mm / 12 mm / 240 mm

36053 – long / 18 mm / 15 mm / 240 mm

36054 – long / 20 mm / 17 mm / 280 mm

36055 – long / 25 mm / 27 mm / 280 mm

16510 – long / 30 mm / 27 mm / 280 mm

16511 – long / 38 mm / 35 mm / 280 mm

16512 – long / 43 mm / 40 mm / 280 mm

66843 – 14 mm / 10 mm / 160 mm

66844 – 20 mm / 16 mm / 196 mm

66845 – 30 mm /26 mm / 196 mm

 Spec Sheet

 Instruction Manual

 Parts Breakdown
