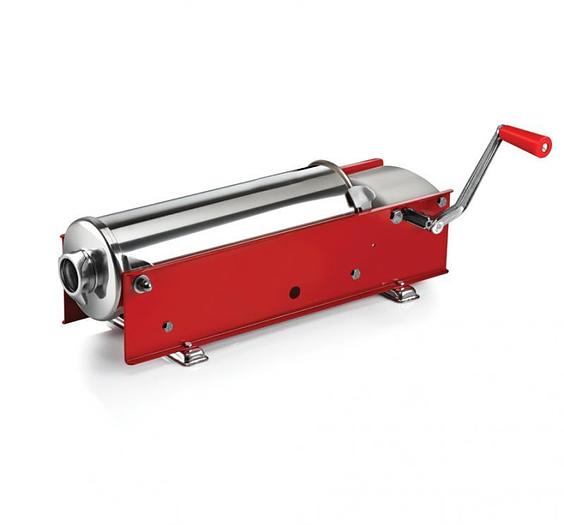

Elite Series Horizontal Two-Speed Gear-Driven Manual Sausage Stuffer with 15 lb. capacity

Capacity: 7 kg

Double piston speed for faster filling

Stainless steel watertight cylinder

Rack made of carbon steel

Pressed and hardened steel gears

Aluminium gearbox with self-lubricating bushings

Moplen piston equipped with silicon seal and air release valve

Funnels provided: ” 10,20,30,40 mm

Description

These manual sausage stuffers offer a wide selection of sizes and configurations for residential and commercial applications. The standard models have enameled steel sides. These 7kg capacity sausage stuffers feature a two-speed gearing system - one gear

for sausage stuffing and one gear to return the piston quickly to the starting position. All models are supplied with a selection of stuffing funnels.

Technical

CAPACITY: 7 kg/15 lbs.

FUNNEL SIZES (mm): 10, 20, 30, 40

DIMENSIONS (LWH): 23.6″ x 9.5″ x 8.7″

GROSS DIMENSIONS: 25″ x 10″ x 10″

WEIGHT: 26.5 lbs.

GROSS WEIGHT: 27 lbs
