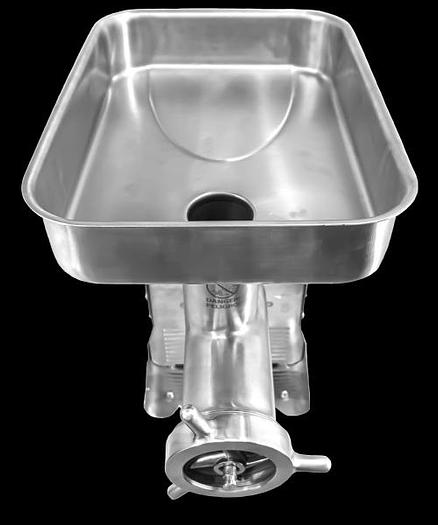

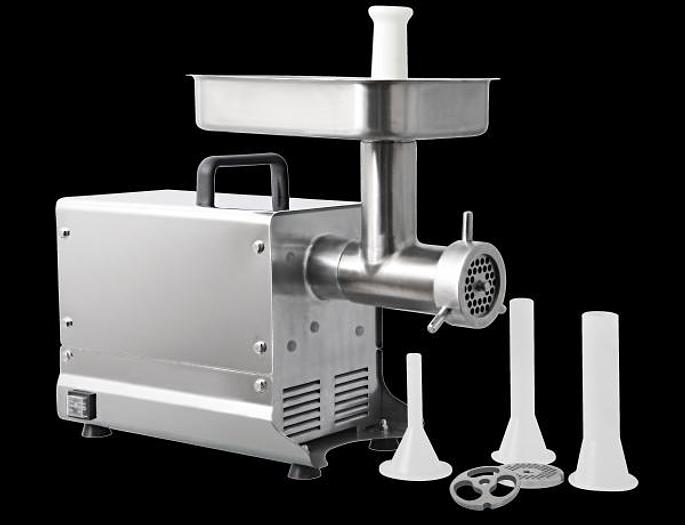

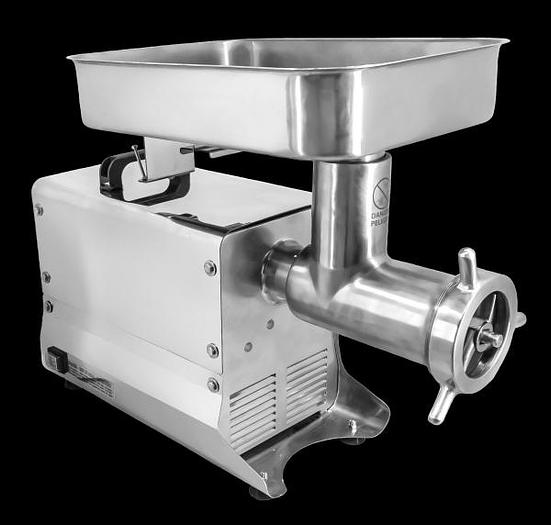

#32 Commercial Medium-Duty Stainless Steel Meat Grinder with 1.5 HP

• The powerful motor can grind up to 720 – 750 lb of meat per hour
• Durable construction with stainless steel knife, head ring, auger, and meat pan
• Permanently lubricated motor with improved grease formulation to reduce noise
• Heavy-duty handle for easy moving
• Long-lasting metal gears with roller bearings ensure smooth and reliable operation.
• Micro safety switch for the meat tray
• Built-in circuit breaker
• Comes with 2 stainless steel cutting plates for coarse and fine grinding
• Includes 3 stuffing tubes

Description

Omcan’s grinders are designed to quickly and efficiently process large quantities of meat with ease & speed.

Powerful 1.5 HP motor can grind up to 720 - 750 lb. of meat per hour making them ideal for butcher shops, food stores & restaurants.

The unit is built to last, with stainless steel components and a permanently lubricated motor that reduces noise. The machine also has a heavy-duty handle for easy moving, a micro safety switch for the meat tray, and a built-in circuit breaker for protection.

Each grinder comes with 2 stainless steel cutting plates for coarse and fine grinding and 3 stuffing tubes for sausage making.

Technical

Item Number: 48888

Model: MG-CN-0032-E

Hub size: #32

Usage: Medium Duty

Power: 1.5 HP/ 1,100 W

Electrical: 120V / 60Hz / 1Ph

Drive System: Gear-Driven

Capacity: 720 – 750 lb. / 326.6 – 340 kg per hour

Includes: 4.5 mm + 10 mm plates; 3 stuffing tubes; 1 meat stomper

Outlet Speed: 110 RPM or 150 RPM

Micro safety switch for meat tray: YES

Meat Tray Size (WDH): 15.5” x 11” x 3”/ 393.7 x 279.4 x 76.2 mm

Net Dimensions (DWH): 25.8” x 12.2” x 19.2”/ 655 x 310 x 477 mm

Gross Dimensions (DWH): 26” x 16.6” x 16.8”/ 660.4 x 421.6 x 426.7 mm

Net weight: 65.7 lbs/ 30 kg

Gross weight: 71.5 lbs/ 32.4 kg

 Spec Sheet

 Instruction Manual

 Parts Breakdown
