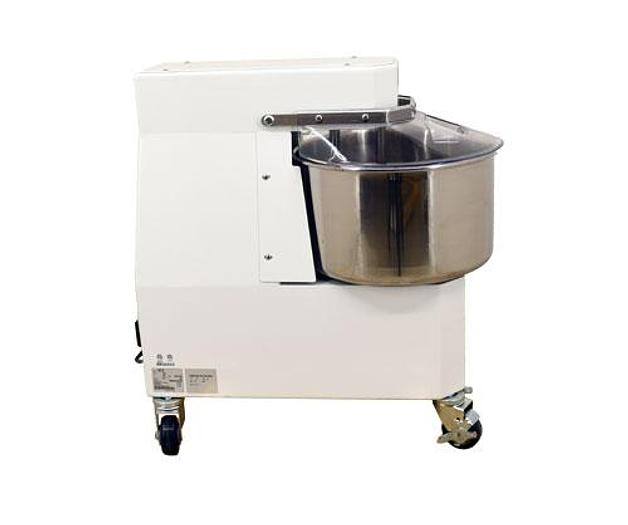

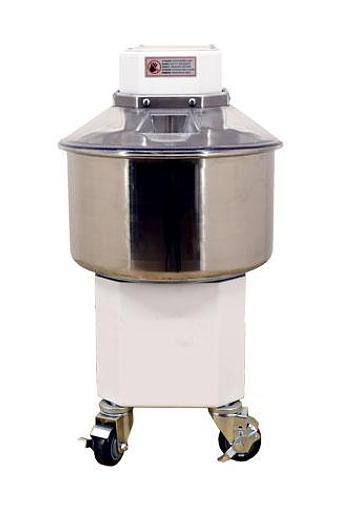

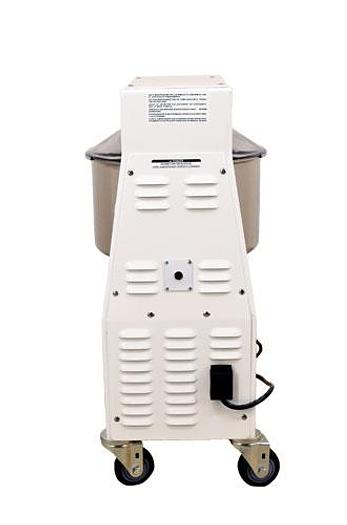

22 QT Spiral Mixer with Fixed Bowl – 120V, 750W

FEATURES:

• Made from large thickness C40 steel

• Scratch resistant powder coating

• The bowl is made with reinforced edge and AISI 304 stainless steel shaft

• Forged spiral tool

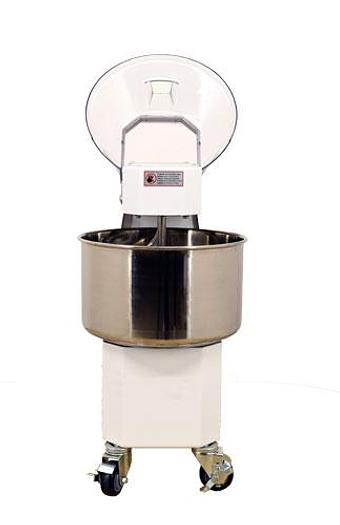

• Lid with opening to add ingredients during operation

• High-efficiency ventilated motor with oil-bath gearbox

• Thermal overload protection circuit breaker

Description

Durable and efficient

This Trento spiral dough mixer is the ideal equipment for your dough-mixing needs. The mixer’s lid allows for ingredients to stay secure during operation with an opening to easily and safely add whatever you may need during the process. Steel construction means a long-lasting and durable purchase for your food-based establishment.

Technical

Bowl Capacity: 22 QT

Max Dry Flour Capacity: 23 lb. (10.5 kg.)

Max Dough Capacity: 37.5 lb. (17 kg.)

RPM (Bowl/Spiral): 10 / 85

Power: 750 W / 1 hp

Electrical: 120V / 60Hz / 1Ph

Bowl Dimensions: Ø 14.2” x 8.3” (360 x 210 mm)

Net Weight: 153.7 lb. (69.7 kg.)

Net Dimensions (WDH): 15.4” x 26.8” x 24.6” (391 x 680 x 624 mm) Open Lid: 37.4” (950 mm)

Gross Weight: 179 lb. (81.2 kg.)

Gross Dimensions (WDH): 22.8” x 32.7” x 39.4” (580 x 831 x 1000 mm)
