63 QT Heavy-Duty Spiral Dough Mixer, 2 Speeds – 208V, 4kW, 3 Ph

• The stainless steel guard is ergonomically designed and completely safe. When the guard is open at a 90° angle, this spiral dough mixer automatically stops working.

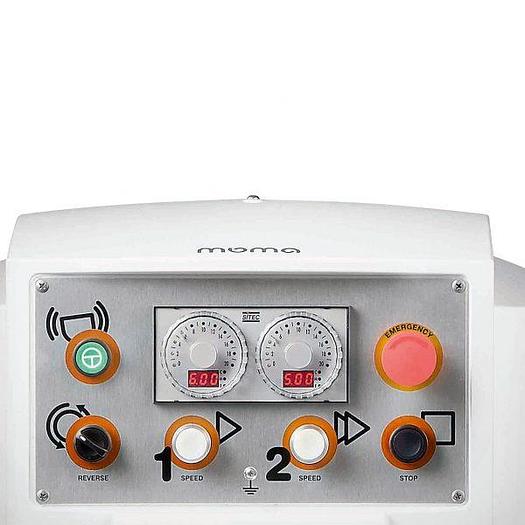

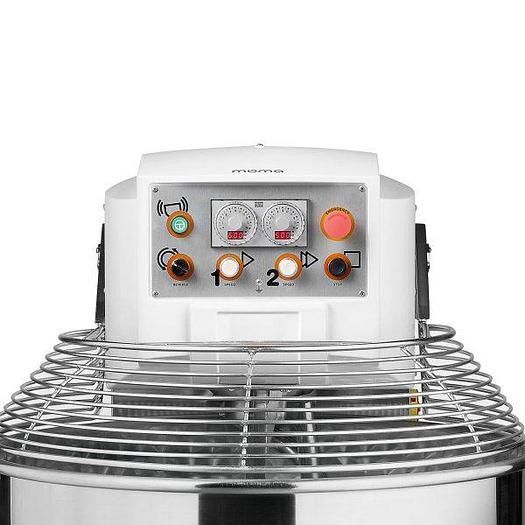

• Allows you to access all functions with a few simple actions: two working speeds, two times and an automatic cycle.

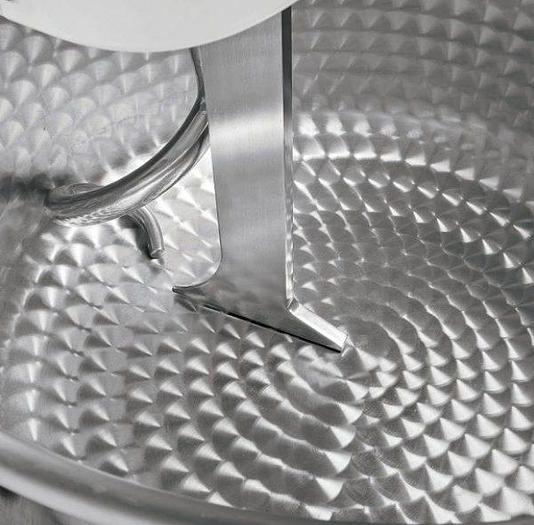

• Both bowl and spiral are made from high-resistance stainless steel.

Description

Trento 63 Qt. spiral dough mixer is designed to help you create dough with a perfect, handmade consistency. Has a 2-speed, 2-timer function, as well as a stainless steel guard which makes it easy to operate and safe to use.

Technical

Bowl Capacity: 63 QT

Max Dry Flour Capacity: 82 lb. (37 kg.)

Max Dough Capacity: 132 lb. (60 kg.)

Bowl RPM: 21

Spiral RPM: 1st speed: 104 RPM | 2nd speed: 208 RPM

Spiral Motor 1,000 – 4,000 W

Power: 3,700 W

Electrical: 208V / 60Hz / 3Ph

Bowl Dimensions (DiaH) 23.6” x 14.2” (600 x 360 mm)

Net Weight: 683.4 lb. (310 kg.)

Net Dimensions (DWH): 25” x 43.7” x 47.2” (635 x 1110 x 1199 mm)

Gross Weight: 760.6 lb. (345 kg.)

Gross Dimensions (DWH): 48” x 28” x 55” (719 x 1219 x 1340 mm)
