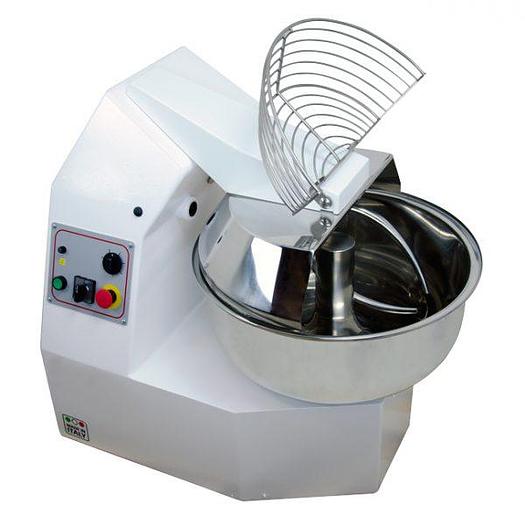

Single-Speed Dough Fork Mixer

• This unit comes equipped with a high-quality stainless steel bowl, fork, holder shaft and bowl guard
• The body is manufactured of powder-coated steel that houses all transmission and mechanical components
• Equipped with a powerful motor, trapezoidal belts, and two reduction gears that work independently for the bowl and fork
• The rotating parts are assembled on ball bearings
• Capable of kneading of up to 25 kilograms of dough

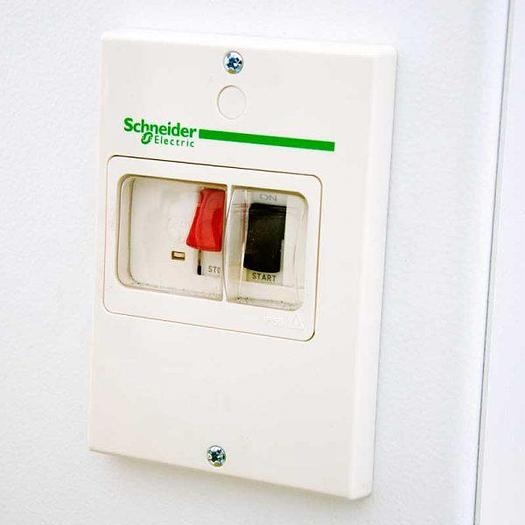

• The electrical system and safety devices conform to European Regulations

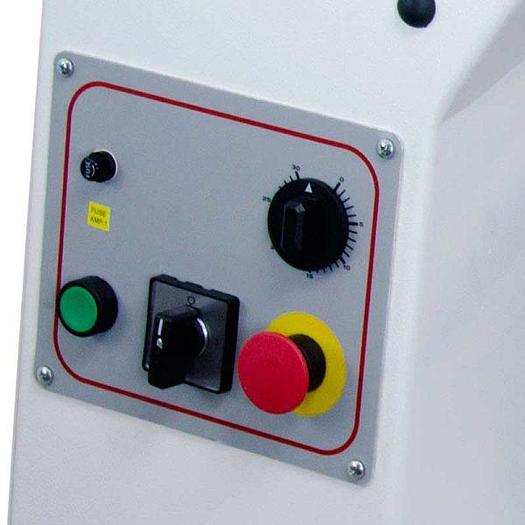

• Comes with a built-in timer

Description

Omcan's single-speed dough fork mixer provides the perfect kneading solution for medium to large baking establishments. This unit comes in with a built-in timer to provide better control of the mixing process and allows the operator to multi-task by setting and forgetting. With this mixer, you ensure consistent results every time!

Technical

POWER: 1.5 kW / 2 HP

BOWL SPEED: 9 RPM

FORK SPEED: 28 RPM

BOWL CAPACITY: 30 L / 26.40 QT

MAXIMUM KNEADING CAPACITY: 25 kg. / 55 lbs. (9L of water; 16 kg of flour); Maximum capacity may vary depending on the ingredients

AMPERAGE: 6.6A

ELECTRICAL: 200-240 V / 60 Hz / 1Ph

NET WEIGHT: 315.26

DIMENSIONS (DWH): 34.25″ x 22.05″ x 35.04″
