11lb (5kg) Dough Sheeter Countertop Model with 28″ Table – 750W, 220V

Description

Suitable for bakeries, restaurants, and hotels, Omcan's dough sheeter is designed for optimal performance. Equipped with safety features, preset roller thickness controls, and foldable tables for space saving storage, this machine increases your bakery's production and efficiency. Safe to operate and easy to clean.

FEATURES:

• Aluminium die-cast shoulders and casing

• Possibility of working all types of dough, obtaining very thin results

• Galvanized hard chrome plated, ground and polished cylinders

• Easy to remove scrapers, for quick and efficient cleaning

• Unique design prevents dough sheets from wrinkling

• Folding tables to reduce machine space when not in use

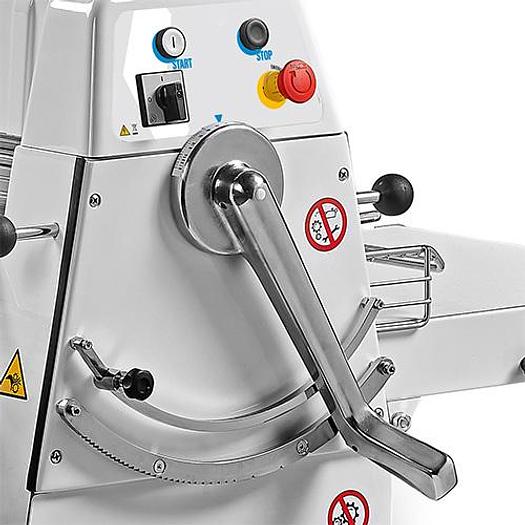

• Low voltage electrical system with dual commands (hand and foot pedal)

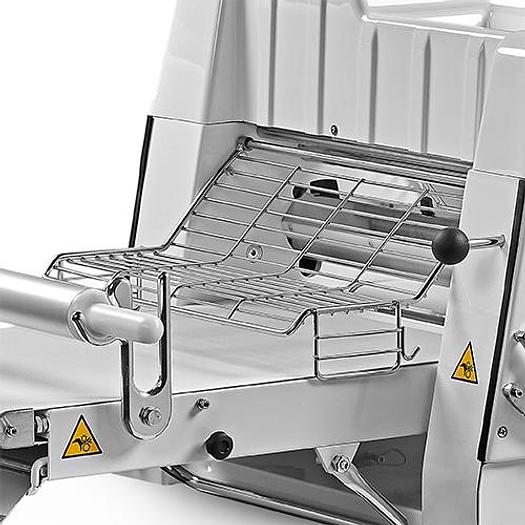

• Accident prevention safety guards connected to the electrical system by limit switches

• Machine mounted on wheels making it fully mobile

Technical

Dough Quantity: 11 lb. (5 kg.)

Sheeting Thickness: 0-1.4” (0 – 35 mm)

Power: 750 W

Electrical: 220V/ 60Hz / 1Ph

Belts Speed: 0.275 – 0.475 m/s

Cylinder Length: 19.7” (500 mm)

Cylinder Diameter: 2.4” (60 mm)

Table Length: 28” (710 mm)

Net Weight: 253.5 lb. (115 kg)

Working Dimensions (WDH): 70.8” x 34.6” x 25” (1800 x 880 x 640 mm)

Closed Dimensions (WDH): 20.5” x 34.6” x 32.7” (520 x 880 x 830 mm)

Gross Weight: 284.4 lb. (129 kg.)

Gross Dimensions (WDH): 36.2” x 24.8” x 40.2” (920 x 630 x 1020 mm)
