Stainless Steel Floor Model Dough Sheeter with 88-inch Conveyor Length – 0.75 HP (550 W), 220 V, 1 Phase

• Made of high-quality stainless steel; ideal for use for long period of time
• Fixed conveyor speed
• Roller adjustments are manual
• Suitable for bakeries, restaurants, and hotels
• Equipped with preset roller thickness control, foldable tables for space-saving storage and retractable end tables

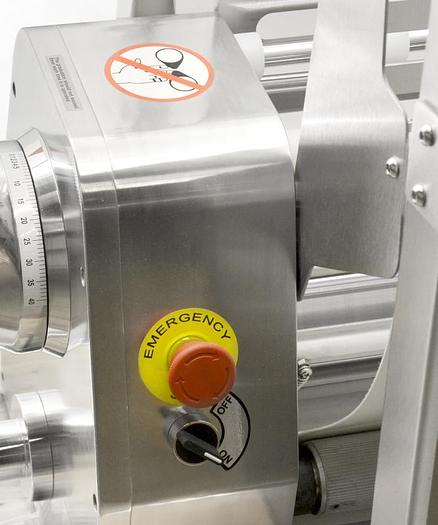

• Safety features: safety guards, emergency stop switch, thermal overload device
• The dough sheeter is SUS430 material
• The bracket board, the base, the safety guard and the tray bar are stainless steel material

Description

Suitable for bakeries, restaurants, and hotels, Omcan's stainless steel floor model dough sheeter is designed for optimal performance. Equipped with safety features, preset roller thickness controls, and foldable tables for space-saving storage, this machine increases your bakery's production and efficiency. Safe to operate and easy to clean.

Technical

ELECTRICAL: 220 V / 60 Hz / 1 Ph

POWER: 0.75 HP / 550 W

ROLLER SIZE: 3.5″ (Dia.), 20.5″ (W)

ROLLER ADJUSTABLE GAP: 1 – 35 mm

CONVEYOR BELT WIDTH: 19.75″/ 501.7 mm

CONVEYOR WIDTH: 22.5″/ 571.5 mm

CONVEYOR BELT SPEED: 18m/min – 32m/min

ROLLER SPEED: 124r/min

MAXIMUM DOUGH CAPACITY: 5 kg. / 11 lbs.

WORKING POSITION DIMENSIONS (DWH): 35″ x 108″ x 46″ | 900 x 2750 x 1173 mm

RESTING POSITION DIMENSIONS (WH): 35″ x 63″ | 900 x 1600 mm

WEIGHT: 419 lbs. / 190 kg.

GROSS WEIGHT: 512 lbs. / 232 kg

GROSS DIMENSION: 37″ x 29″ x 66″/ 940 x 737 x 1676 mm
