Southbend DCX-10S Natural Gas Direct Steam Floor Model Steamer w/ (20) Full Size Pan Capacity, 120v

Southbend DCX-10S Description

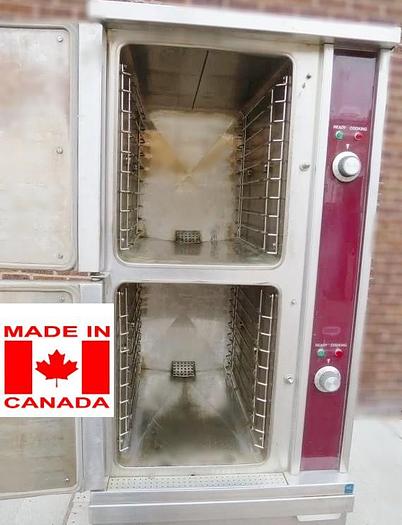

The Southbend DCX-10S convection steamer is made of stainless steel with a satin finish, providing corrosion resistance and durability. Made from one piece of material, the cooking compartments are long-lasting and quick to clean. Gasket seals on the hinged doors keep steam and pressure inside the chamber, and a magnetic latch with a positive lock and seal mechanism protects the contents. When a door is opened, steam flow stops to prevent burns and resumes when the door is closed again.

Each compartment is independently controlled by a 60-minute timer. Indicator lights notify the user when the unit is ready to steam and cook, and an alarm signifies that the cooking cycle is complete. The Southbend DCX-10S floor convection steamer has 6-inch stainless steel legs with adjustable feet that sit level on most uneven surfaces.

Product Details

• 304 stainless steel, all-welded construction with a satin finish
• Holds (10) 12-in. x 20-in. x 1-in. pans
• Easy-to-clean 1-piece cooking chamber
• Hinged doors have gasket seals, a positive lock and seal mechanism, and a magnetic latch
• Detachable stainless steel pan supports and a drip trough are connected to the drain
• The removable side panel provides full access to the control housing
• 60-min. timer independently controls each compartment
• A green indicator light illuminates when the compartment is ready to cook
• A red indicator light illuminates when the product is cooking
• An audible alert notifies the user when the cooking cycle is complete
• Steam flow pauses when the door is opened and resumes when the door is closed
• Condensate drain with straightforward thermostatic controls

• Mounted on a 24-in. cabinet base with a full-perimeter angle frame
• 6-in. stainless steel legs
• Adjustable bullet feet on the front and adjustable flanged feet on the rear
• Pressure-reducing valve delivers 9 PSI compartment pressure
• 2 A
• 120 V/50-60 Hz/1 ph, plug with a cord
• Interior dimensions: 14 in. W x 21 in. D x 17 in. H
• Overall dimensions: 24 in. W x 33 in. D x 68.5 in. H

Convection Steamer, direct steam, (2) compartment, (10) 12" x 20" pan capacity, 24" cabinet base, automatic blowdown, 60 minute timer per compartment, removable pan supports & drip trough, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF, 120v/60/1ph
