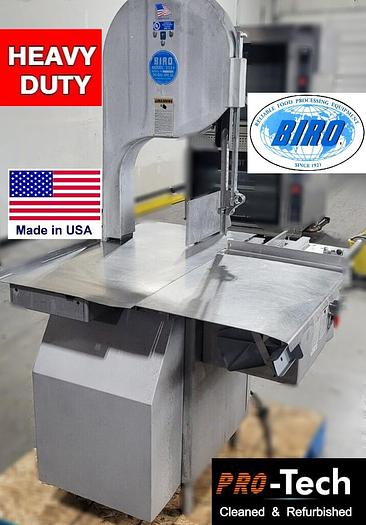

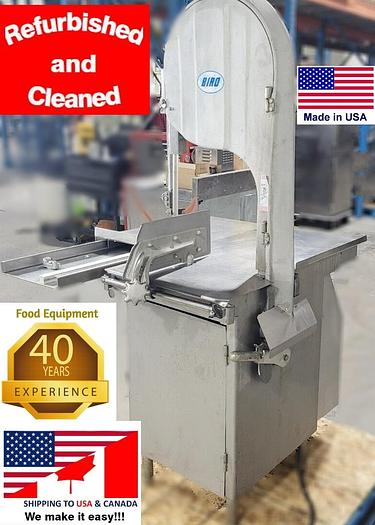

Biro 3334 16″ Meat Saw Butcher Fish Grocery Bone Saw 3 ph
Product Details
3 HP Motor for efficient cutting
3 Phase 208v
General purpose switch w/ Thermal overload
The Head and door are Aluminum with removable head & removable door
Unitized welded, Stainless steel Base Structure
124” Blade (3150mm) L x 5/8” (16mm) W x .022 (.56mm) thick, 3 teeth per inch, hard tooth, (one supplied with each saw)
Upper and lower blade backup guide assemblies with carbide long-life inserts, each removable as an assembly
Ratchet arm and cam against pound tested spring and tension spring gauge
16” Blade Wheels, (40.64cm) single flange, cast iron, nickel plating, upper wheel assembly removable
Heavy duty tapered roller bearings are used in the upper wheel hub and lower bearing housing
Poly Catch Pan, rounded corners, sealed off from other parts of the base, accessible through a hinged door
Stainless steel body, long-life carbide guide inserts, steel saw cleaners, removable as a unit for easy cleaning (assembly also adjustable as a unit)
Non-slip silent v-belt drive system, tension adjustable
Stainless steel leg bolt levelers
Meat Carriage has S.S. bearings 15-1/2” (394mm) x 23-1/2” (597mm), nylon guides
Meat Gauge Plate has Stainless steel faced, adjustable from 1/16” (1.6mm) to 6-1/2” (165mm), Locks in position, easy to adjust, entire assembly removable for cleaning
Sealed off motor compartment from meat contact areas, easily accessible through the removable panel door
The platter is held in place with two stainless steel push-pull hold-down latches
Safety end cut pusher plate and safety pusher plate storage hanger are supplied as standard equipment
